We are Manufacturer, Supplier and Exporter of X-Ray Machines, Security X-Ray Machines, Portable X-Ray Machines, Industrial X-Ray Generators, High Frequency Industrial X-Ray Generators, Food Inspection Systems, Vehicle Scanners, Food X-Ray Machine, X Ray Baggage Scanner, Baggage Scanning X Ray Machine. Our setup is situated in Pune, Maharashtra, India and majorly we serve our customers from all over India and African, Gulf and South American countries

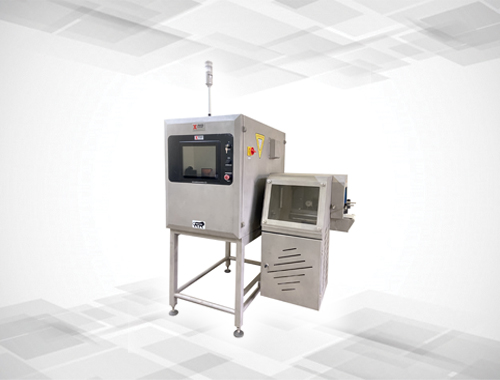

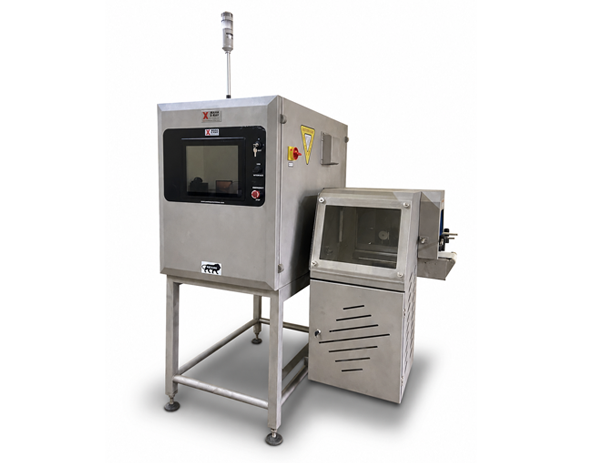

MXF200 is specially customized for inspection at high line speeds, in packaging formats such as metal or composite tins, plastic containers or bottles. Flexible X-ray inspection solution designed to inspect a diverse range of applications. Because of its compact size, system is easy to install at line. Its inbuild rejection system gives an accuracy of rejection with the sufficient storage.
| Machine Type |
Food Scan X-Ray Machine |
| Model Number |
MXF200 |
| Tunnel Size |
230X200mm |
| Maximum Job Size Can Be Scan |
Diameter 150X 200mmt |
| Detector Type |
Line Scan Detector |
| Detector Area |
250mm |
| X-Ray Generator Energy |
80kV 1mA |
| Machine Size (LXWXH) |
1700X2000X2200mm |
| Machine Weight |
400 KG |
| Part Loading |
Conveyor Based |
| Display |
15” Touchscreen display |
| Load Capacity |
20 kg |
| Rejection System |
Inbuild Pneumatic pusher rejection |
| Industry |
Food, Pharma, Beverage, Pet Food, Nutraceuticals, Personal Care. |
| X-Ray Emission |
< 1uSv/hr |
