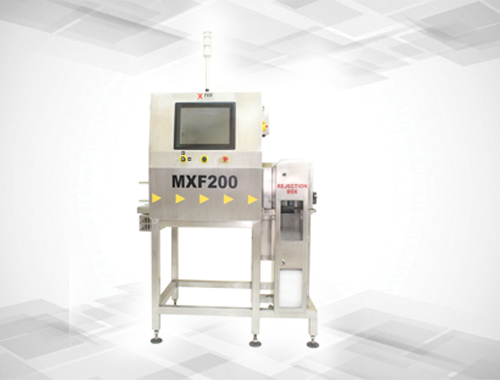

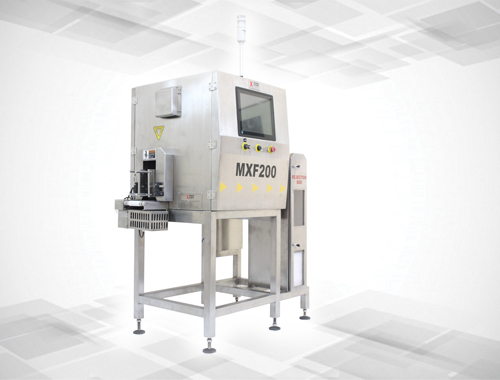

MXF200B is specially customized for inspection at high line speeds, in packaging formats such as metal or composite tins, plastic containers or bottles. Flexible X-ray inspection solution designed to inspect a diverse range of applications. Because of its compact size, system is easy to install at line. Its inbuild rejection system gives an accuracy of rejection with the sufficient storage.

   Machine Type    Food Scan X-Ray Machine
   Model Number    MXF200B
   Tunnel Size    100X150mm
   Maximum Job Size Can Be Scan    Diameter 50X 120mm
   Detector Type    Line Scan Detector
   Detector Area    250mm
   X-Ray Generator Energy    80kV 1mA
   Machine Size (LXWXH)    1400X100X2200mm
   Machine Weight    300 KG
   Part Loading    Conveyor Based
   Display    15” Touchscreen display
   Load Capacity    20 kg
   Rejection System    Inbuild Pneumatic pusher rejection
   Industry    Food, Pharma, Beverage, Pet Food, Nutraceuticals, Personal Care.
   X-Ray Emission    < 1uSv/hr
