MIX1403FPD0505 is made for 100% inspection system. With the help of PLC based manipulator system, inspection become easier. Rotary table and Linear guideways increase the speed of inspection. Operator can easily perform measuring and inspection himself. Provide with special set of fixtures to reduce loading unloading time.

   Machine Type    Industrial X-Ray Machine
   Model Number    MIX1403FPD0505
   Door Opening    500X700mm
   Maximum Job Size Can Be Scan    100X100X100mm
   Detector Type    Flat Panel Dynamic Detector
   Detector Area    130X130mm
   X-Ray Generator Energy    160kV 1mA
   Machine Size (LXWXH)    1700X2000X2200mm
   Machine Weight    1100 KG

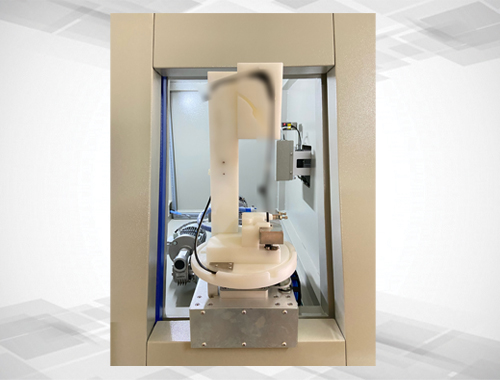

   Part Loading    Manipulator with Y axis and Rotary table

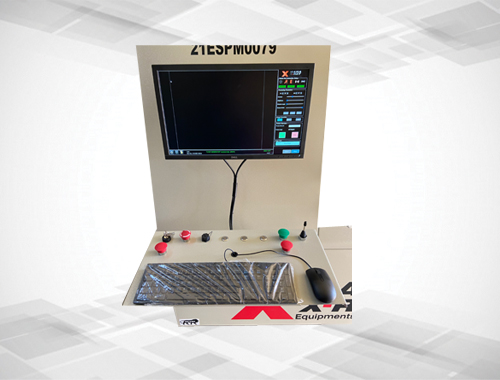

   Display    21” non touch display
