225 kV X-Ray Systems - Automotive Parts, Weld Inspection

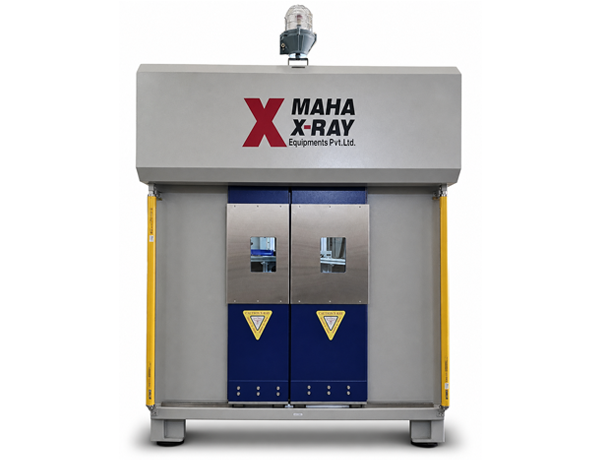

Mahaxray 225 kV X-Ray Systems are designed for inspection of medium to high-density materials, offering deeper penetration while maintaining excellent image quality. Equipped with a high-voltage (HV) tank cooling system and a dynamic flat panel detector, these systems ensure stable operation during continuous inspections and deliver sharp, real-time images. The 225 kV systems are widely used for automotive components, castings, weld inspection, and aerospace parts, making them ideal for demanding industrial and R&D applications.
Get Quote

Applications
  • ➤ Aluminium and magnesium castings
  • ➤ Automotive and aerospace components
  • ➤ Weld inspection (medium thickness)
  • ➤ Structural components and assemblies
  • ➤ Precision mechanical parts
  • ➤ Failure analysis and R&D
  • ➤ Quality assurance in industrial manufacturing
  • ➤ Defence Sector
Technical Specifications (Typical / Configurable)
  • X-Ray Tube Voltage : Up to 225 kV
  • Tube Current : Up to 3.33-8 mA (application dependent)
  • X-Ray Source : HV Tank type with oil cooling
  • Cooling System : Closed-loop HV tank water cooling system
  • Focal Spot Size : 0.4 & 1mm
  • Detector Type : Dynamic Digital Flat Panel Detector
  • Detector Size : Configurable (e.g. 130X130 mm, 210x210 mm, 430x430 mm)
  • Image Acquisition : Real-time dynamic imaging
  • Penetration Capability : Medium to high-density materials
  • System Configuration : Cabinet / Inline system
  • Power Supply : 230V AC, 50 Hz
  • Safety Compliance : Fully shielded, radiation-safe design

Standard Features
  • ➤ 225 kV high-stability X-ray source
  • ➤ Oil-cooled HV tank system for continuous operation
  • ➤ Dynamic flat panel detector for real-time inspection
  • ➤ Advanced image processing & measurement tools
  • ➤ Radiation safety interlocks & lead shielding
  • ➤ Industrial-grade control system
  • ➤ Emergency stop & system diagnostics
  • ➤ User-friendly inspection software
Optional Features
  • ➤ Microfocus X-ray tube for high-resolution inspection

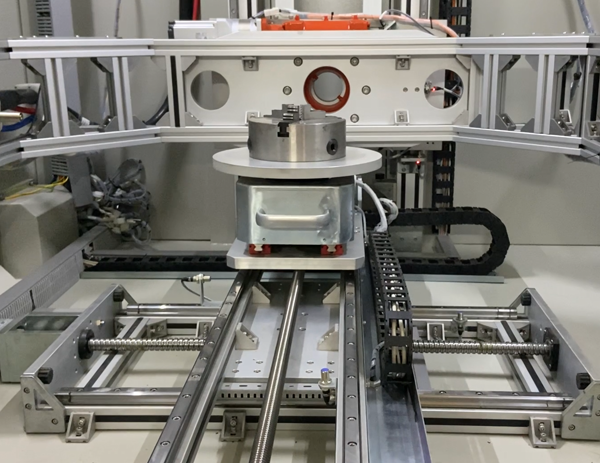

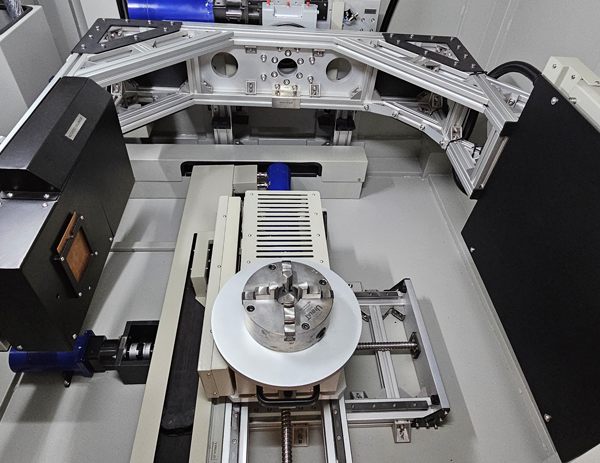

  • ➤ Motorized multi-axis manipulators (XYZ, rotary, tilt)
  • ➤ Heavy-load rotary table systems
  • ➤ Adjustable and custom collimator systems
  • ➤ Conveyor or inline inspection integration
  • ➤ Image archiving, reporting & traceability modules
  • ➤ Remote diagnostics & service support
