Industrial X Ray Machines, 450 kV X-Ray Systems, Manufacturer India

We are Manufacturer, Supplier and Exporter of Industrial X Ray Machines, 450 kV X-Ray Systems, Security X-Ray Machines, Portable X-Ray Machines, Industrial X-Ray Generators, High Frequency Industrial X-Ray Generators, Food Inspection Systems, Vehicle Scanners, Food X-Ray Machine, X Ray Baggage Scanner, Baggage Scanning X Ray Machine. Our setup is situated in Pune, Maharashtra, India and majorly we serve our customers from all over India and African, Gulf and South American countries

Purpose : NDT, inspection, R&D, Casting & Electronics

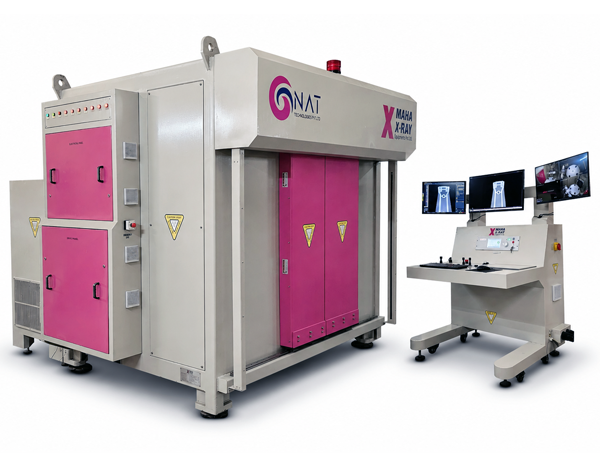

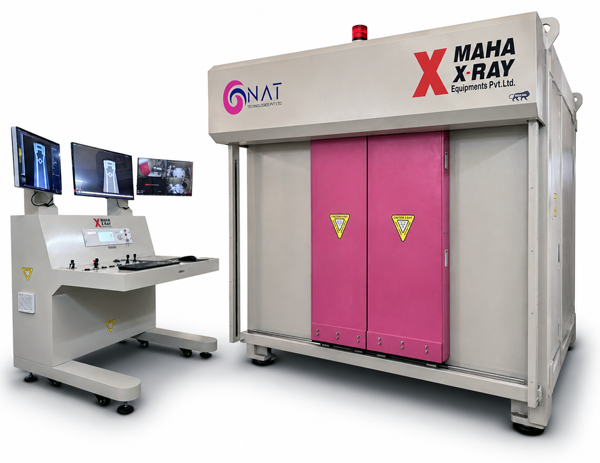

450 kV X-Ray Systems - Heavy Castings, Aerospace, Thick Materials

Mahaxray 450 kV X-Ray Systems represent the highest level of industrial radiographic inspection, engineered for very high-density and thick-section components. Designed with a high-voltage (HV) tank oil cooling system and a dynamic flat panel detector, these systems deliver exceptional penetration, stable output, and real-time high-quality imaging during continuous operation. The 450 kV systems are ideal for aerospace, defence, heavy engineering, power generation, and critical infrastructure applications, where inspection accuracy and reliability are mission-critical.

Applications

➤ Very thick steel and high-density castings
➤ Aerospace structural components and assemblies
➤ Defence sector inspection (ordnance, armour, critical assemblies)
➤ Power plant components (turbines, rotors, valves)
➤ Pressure vessels and heavy weld inspection
➤ Large industrial forgings and castings
➤ Advanced failure analysis and R&D
➤ High-criticality quality assurance applications

Technical Specifications (Typical / Configurable)

➤ X-Ray Tube Voltage : Up to 450 kV
➤ Tube Current : Up to 3.3 mA (application dependent)
➤ X-Ray Source : High-power HV tank type
➤ Cooling System : Oil-cooled HV tank with closed-loop cooling
➤ Focal Spot Size : 0.4 & 1.0 mm
➤ Detector Type : Dynamic Digital Flat Panel Detector
➤ Detector Size : Configurable (e.g. 130X130 mm, 210x210 mm, 430x430 mm)
➤ Image Acquisition : High-speed real-time dynamic imaging
➤ Penetration Capability : Very high-density & thick materials
➤ System Configuration : Cabinet / Open / Inline / Custom inspection cells
➤ Power Supply : 415V AC, 50 Hz
➤ Safety Compliance : Fully shielded, radiation-safe industrial design

Standard Features

➤ High-stability 450 kV X-ray source
➤ Heavy-duty oil-cooled HV tank system
➤ Dynamic flat panel detector for real-time inspection
➤ Advanced image enhancement & measurement tools
➤ Lead-shielded enclosure with safety interlocks
➤ Industrial PLC-based control & monitoring
➤ Emergency stop, fault diagnostics & alarms
➤ User-friendly inspection and reporting software

Optional Features

➤ Fine-focus tube for enhanced defect detectability
➤ Heavy-load motorized manipulators (XYZ, rotary, tilt)
➤ Large-capacity rotary tables & positioning systems
➤ Custom collimators, filters & beam-shaping solutions
➤ Automated defect recognition (ADR) & AI-assisted analysis
➤ Robotic or inline inspection integration
➤ Image archiving, traceability & compliance reporting
➤ Remote diagnostics, preventive maintenance & service support
➤ Cabinet Type X-Ray Machines
➤ Conveyor-based X-Ray Inspection Systems
➤ Custom / Special Purpose X-Ray Systems
